A voltage regulator controls generator output by adjusting the generator's field current to keep voltage steady.
I have designed and tested generator control systems for years, and I’ll walk you through exactly how A Voltage Regulator Controls Generator Output By managing excitation, sensing load changes, and using feedback loops. Read on to get clear, practical explanations, real-world tips, and simple diagrams you can use to troubleshoot or specify a regulator for any generator.
How a Voltage Regulator Really Works
A Voltage Regulator Controls Generator Output By sensing the generator’s terminal voltage.
It compares that voltage to a set reference.
When the terminal voltage drops, the regulator increases the field current.
When the terminal voltage rises, the regulator reduces the field current.
This cycle happens continuously and fast.
The regulator forms a closed-loop feedback system.
The loop keeps output voltage within tight limits despite load changes.
Key methods a voltage regulator uses to control output
A Voltage Regulator Controls Generator Output By using a few core methods:
- Field-current modulation. The regulator varies DC exciter current to change magnetic flux and generated voltage.
- Automatic voltage regulation (AVR) algorithms. These include proportional and integral actions to reduce steady-state error.
- Sensing and filtering. The regulator measures voltage and filters noise before acting.
- Protective limits. It prevents over-excitation and under-excitation to protect the generator.
Each method works together.
Field-current modulation is the most direct.
AVR tuning shapes how quickly and smoothly the system responds.

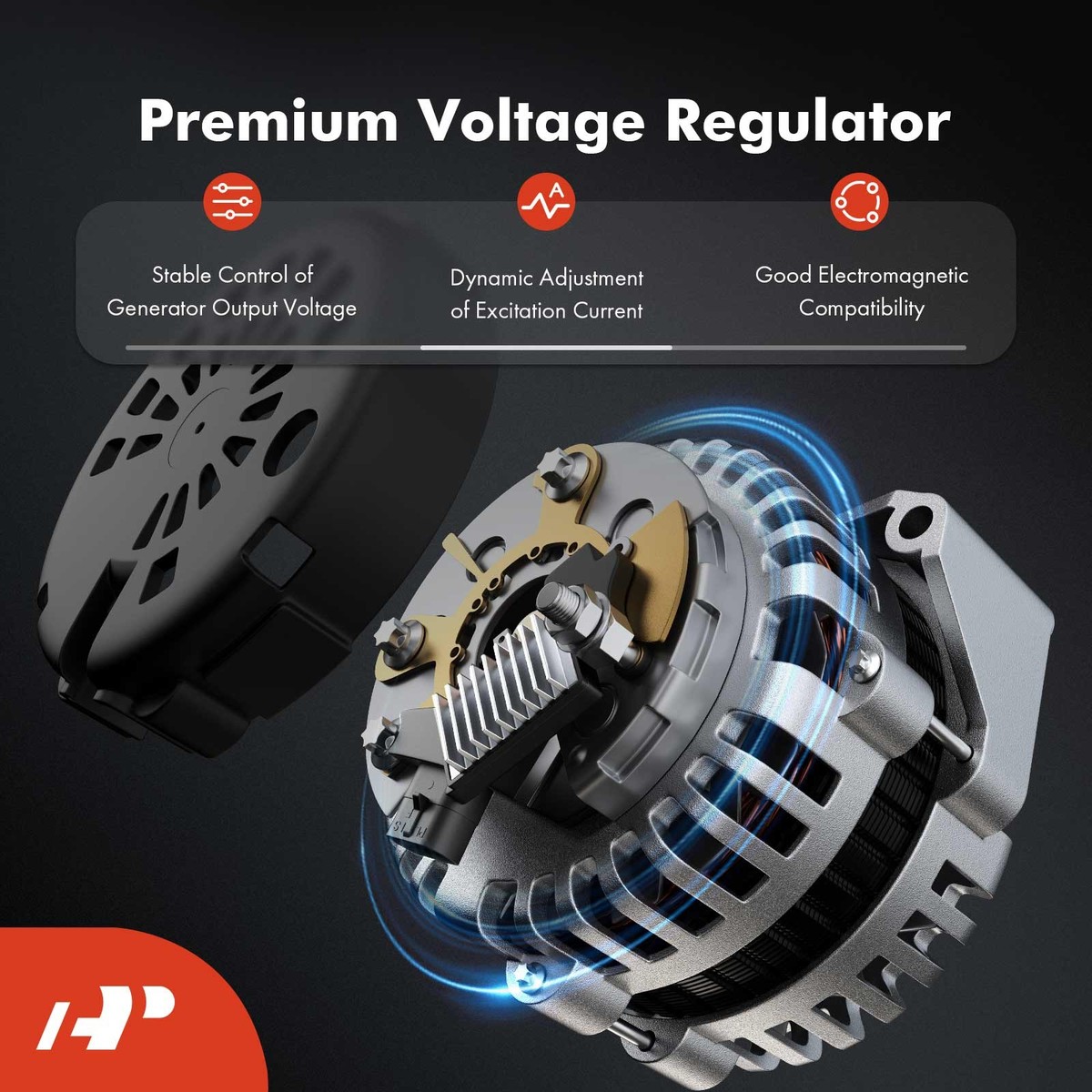

Types of voltage regulators used with generators
A Voltage Regulator Controls Generator Output By choosing one of several regulator types based on size and application:
- Electronic AVR. Uses solid-state electronics and offers fast, precise control.
- Brushless AVR. Works with rotating exciters and keeps the rotor free of brushes.
- Mechanical or relay regulator. Older tech, used in small or legacy systems.
- Digital regulator. Software-based with tunable parameters and communication links.
Choosing the right type affects reliability and maintenance.
For prime power or critical loads, digital or brushless AVRs are common.
Sensing, feedback, and stability basics
A Voltage Regulator Controls Generator Output By relying on accurate sensing and stable feedback.
Accurate sensing means the regulator reads true terminal voltage under load.
Feedback stability requires correct gain and time constants to avoid hunting or slow response.
Key stability concepts:
- Gain. Too high causes oscillation. Too low causes slow correction.
- Integral action. Removes steady-state error but can slow response.
- Filtering. Removes spikes but adds delay.
I tune these settings by testing with step loads and watching voltage and rotor current traces.
Examples and real-world tips from my experience
A Voltage Regulator Controls Generator Output By performing best when installed and tuned correctly.
Here are practical lessons I learned on the job:
- Calibrate the sensing point. I once fixed a persistent 3% voltage drift by moving the sense lead to the actual load bus.
- Start with conservative gain. Aggressive tuning created hunting under non-linear loads.
- Use built-in protections. They prevented damage during a short-circuit test on a genset I commissioned.
- Monitor exciter current. High DC exciter current often precedes overheating and field failure.
These tips cut down trips and extend generator life.
Benefits and limitations of voltage regulation on generators
A Voltage Regulator Controls Generator Output By offering stable voltage and system protection.
Benefits include consistent voltage for sensitive equipment and reduced wear on alternators.
Limitations arise from extremes: sudden large faults, poor grounding, or improper sensing can overwhelm any regulator.
Practical limitations to know:
- Response speed has physical limits set by rotor inertia.
- Harmonic-rich loads can confuse sensing circuits.
- Aging components change regulator behavior over time.
Be realistic about what a regulator can and cannot fix.
Installation, troubleshooting, and maintenance checklist
A Voltage Regulator Controls Generator Output By needing proper installation and periodic checks.
Follow these steps to keep a regulator healthy:
- Verify sense wiring and polarity before startup.
- Inspect exciter connections and brushes if present.
- Log voltage and exciter current during varied loads.
- Re-tune gain and droop settings after major equipment changes.
- Replace aging capacitors or connectors proactively.
Troubleshooting quick checks:
- If voltage hunts, reduce AVR gain or add slight filtering.
- If voltage droops on load, check exciter current path and regulator reference.
- If regulator fails to respond, confirm power supply to the AVR and sensing input.
Doing small checks prevents big failures.
Frequently Asked Questions of A Voltage Regulator Controls Generator Output By
How does a voltage regulator detect voltage change?
A regulator measures the generator’s terminal voltage via a sensing lead. It compares that measured value to a set reference and then adjusts excitation accordingly.
What is the role of field current in voltage control?
Field current creates the magnetic field on the rotor. Changing field current alters generated EMF and thus the terminal voltage.
Why does voltage drop when load increases?
When load increases, internal voltage drops occur due to impedance. The regulator increases field current to restore terminal voltage.
How fast should an AVR respond to load changes?
An AVR should respond fast enough to keep voltage within adjustable limits without oscillating. Typical response times are fractions of a second to a few seconds depending on system size.
Can a voltage regulator protect the generator from faults?
Yes. Many regulators include protective features like over-excitation limiting and alarms, but they do not replace primary protective devices like circuit breakers.
Conclusion
A Voltage Regulator Controls Generator Output By continuously measuring voltage, comparing it to a reference, and adjusting field current to keep output steady. Understanding these basics helps you choose the right regulator, tune it effectively, and troubleshoot issues quickly. Put these tips into practice: check sense wiring, monitor exciter current, and start with conservative AVR settings. If you found these insights useful, subscribe for more practical guides or share your generator questions in the comments.
