How To Hook Up Wiring For Wen Generator Engine Switch: DIY

Wire the WEN generator engine switch by matching starter, ignition, and ground wires securely and safely.

I have wired many small generators and will walk you step by step through how to hook up wiring for wen generator engine switch. This article covers safety, parts, wiring basics, clear diagrams, testing steps, and troubleshooting tips from hands-on experience. Read on to safely complete your wiring with confidence.

What you need to know before wiring
Source: amazon.com

What you need to know before wiring

Working on generators can be simple if you respect safety and follow the right steps. The WEN engine switch controls ignition, starter, and some grounding or kill circuits. Wrong wiring can damage the engine, burn the switch, or cause shock.

Follow manufacturer specs for your WEN model. Turn off fuel and disconnect spark plug before wiring. If you are not confident, hire a qualified technician to avoid risk.

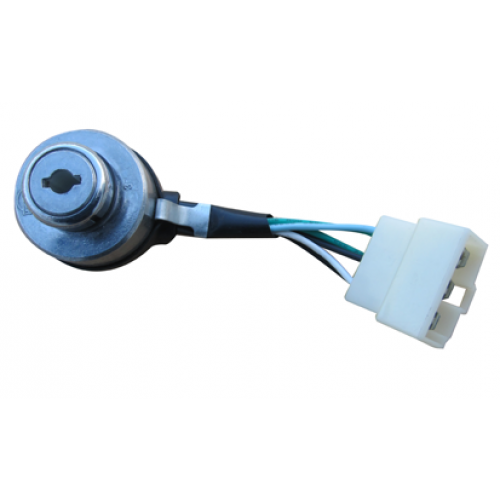

Tools and parts required
Source: wenproducts.com

Tools and parts required

Gather the right tools to make wiring clean and reliable. Use the correct crimpers, wire strippers, and connectors. Poor tools cause loose connections and failures.

  • 14–18 AWG stranded wire rated for engine use.
  • Ring terminals and insulated spade connectors.
  • Heat-shrink tubing or quality electrical tape.
  • Multimeter, wire crimper, wire stripper, and small screwdrivers.
  • Manufacturer wiring diagram or wiring label from the WEN unit.

Understanding generator wiring basics
Source: powerequipmentforum.com

Understanding generator wiring basics

A short wiring primer helps you avoid mistakes. The engine switch usually has three common circuits: starter (or pull-start kill override), ignition (on/off), and ground or kill switch. Colors and labels vary by WEN model, so identify each terminal first.

Common terms explained:

  • Ignition: Sends power to the ignition coil to run the engine.
  • Kill: Grounds the coil or cuts ignition to stop the engine.
  • Starter or solenoid: Used only on electric start models to crank the engine.
  • Ground: Chassis or engine ground that completes the circuit.

Keep the focus on how to hook up wiring for wen generator engine switch by matching each labeled wire to the correct terminal. Use a multimeter to confirm continuity before finalizing.

Step-by-step: how to hook up wiring for wen generator engine switch
Source: wsepo.com

Step-by-step: how to hook up wiring for wen generator engine switch

Follow these clear steps to wire your WEN engine switch safely. Read all steps first. Work calmly and re-check labels.

  1. Prepare the unit
    1.1 Turn off fuel and remove spark plug boot to prevent accidental starts.
    1.2 Disconnect the battery if present.

  2. Identify wires and terminals
    2.1 Locate the engine switch terminals. They may be labeled IGN, GND, or ST.
    2.2 Match the harness wires to those labels. If unlabeled, trace each wire to the ignition coil, kill switch, or starter.

  3. Strip and terminate wires
    3.1 Strip about 3/8 inch of insulation.
    3.2 Crimp a proper connector on each wire and apply heat-shrink tubing.

  4. Connect ignition wire
    4.1 Attach the ignition wire to the IGN terminal on the switch.
    4.2 Tighten screws firmly but do not overtighten.

  5. Connect kill or ground wire
    5.1 Attach the kill wire to the GND or KILL terminal.
    5.2 Ensure the engine ground path is clear and tight.

  6. Connect starter/solenoid (if applicable)
    6.1 Attach starter control to ST or SOL terminal.
    6.2 Verify the starter relay wiring matches polarity and fuse protection.

  7. Secure wiring and test
    7.1 Bundle wires away from moving parts and hot surfaces.
    7.2 Reconnect battery, replace spark plug boot, and test switch function.

Always double-check how to hook up wiring for wen generator engine switch by testing in low-risk conditions. If the engine behaves oddly, stop and re-check connections.

Wiring diagram examples and notes
Source: amazon.com

Wiring diagram examples and notes

Simple diagram notes make wiring easier. Below are typical connections for two common setups.

Example A: Simple ignition and kill switch

  • IGN terminal — to ignition coil hot lead.
  • KILL terminal — to coil ground or kill wire.
  • CHASSIS GND — engine block ground to frame.

Example B: Electric start with solenoid

  • IGN — to ignition coil.
  • ST — to starter relay coil input.
  • BATT + — fused battery positive to starter solenoid main.
  • GND — negative battery to engine ground.

Label each wire with tape as you work. This keeps the wiring clear and helps if you service the unit later.

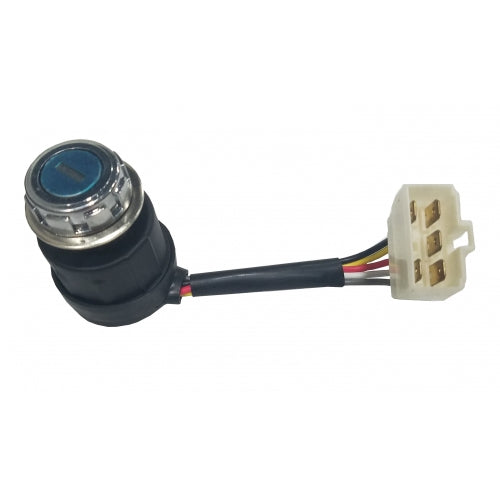

Troubleshooting and testing after wiring
Source: wenproducts.com

Troubleshooting and testing after wiring

Test methodically to find and fix issues. Use a multimeter to confirm voltages and continuity.

  • No start: Check IGN continuity to coil and ensure kill wire is not shorted to ground.
  • Starts then dies: Kill wire may be grounding intermittently; secure its connection.
  • Starter does not engage: Verify ST terminal activation voltage when switch is turned to cranking position.

When troubleshooting, keep steps simple and repeat tests. This approach prevents guesswork and saves time.

Common mistakes and tips from experience
Source: generatorbible.com

Common mistakes and tips from experience

I’ve wired many generators and learned that small errors cause most headaches. Treat wiring like plumbing: leaks (loose connections) cause trouble over time.

Common mistakes to avoid:

  • Wrapping multiple wires under one screw terminal — use proper connectors.
  • Using the wrong gauge wire for starter or solenoid circuits.
  • Not insulating exposed terminals near fuel or hot exhaust.
  • Skipping a test with a multimeter before powering the system.

Practical tips:

  • Take photos before you disconnect existing wires. They help when you reassemble.
  • Use dielectric grease on connectors exposed to weather.
  • Secure wires with zip ties, but not so tight they chafe insulation.

These lessons reduce failures and make future repairs easier. Keep the focus on how to hook up wiring for wen generator engine switch with care and patience.

Quick PAA-style questions about wiring
Source: dm-handel.de

Quick PAA-style questions about wiring

What is the safest way to test a newly wired switch?

  • Use a multimeter to check continuity and voltage. Keep the spark plug disconnected during the electrical test for safety.

How do I know which wire is the kill wire?

  • Trace the wire to the ignition coil or to a labeled kill screw. The kill wire commonly grounds the coil to stop the engine.

How long should wiring take for a basic switch hookup?

  • For a basic ignition and kill hookup, expect 30–60 minutes if you have tools and a diagram.

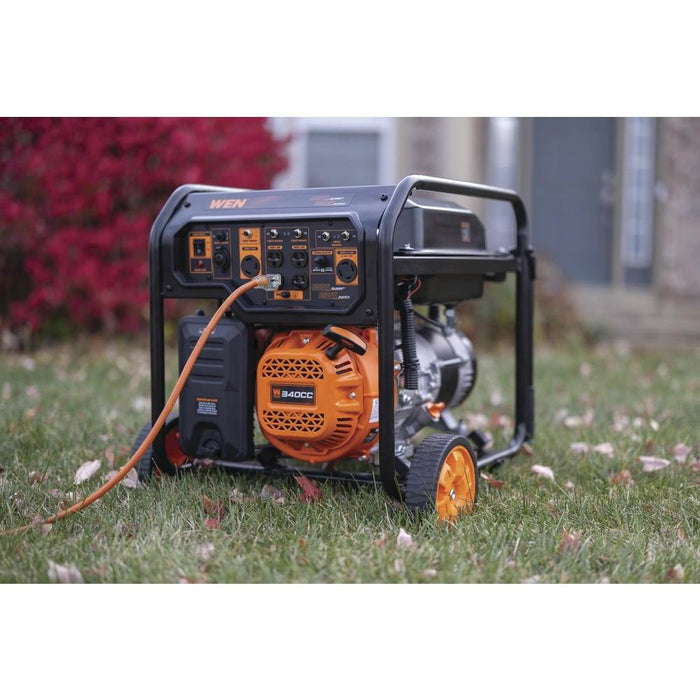

Frequently Asked Questions of how to hook up wiring for wen generator engine switch
Source: wenproducts.com

Frequently Asked Questions of how to hook up wiring for wen generator engine switch

What tools do I need to hook up the WEN generator engine switch?

You need a multimeter, wire strippers, crimpers, insulated terminals, heat-shrink tubing, and basic screwdrivers. Proper tools make secure, lasting connections.

Can I wire the switch while the spark plug is connected?

No. Remove the spark plug boot before wiring to prevent accidental engine starts and reduce risk of injury.

What wire gauge should I use for the starter and ignition?

Use 14–18 AWG for ignition and control circuits. Use heavier gauge for starter power lines as specified by your WEN model.

How do I identify switch terminals if they are not labeled?

Trace wires to their destinations: the wire to the coil is IGN, the one that grounds the coil is KILL, and the one to the starter relay is ST. Use a multimeter to confirm.

Is soldering better than crimping for these connections?

Crimped, insulated terminals are preferred for vibration-prone engine use. Solder can be used but must be protected with heat-shrink to avoid breaking under vibration.

Conclusion

You can safely and correctly wire a WEN engine switch by preparing, identifying terminals, using proper tools, and testing methodically. Follow safety steps, use the right wire and connectors, and test with a multimeter. Try one simple wiring task at a time and document your work for future service. If you feel unsure, consult a professional. Share your experience or questions below and subscribe for more practical generator guides.
